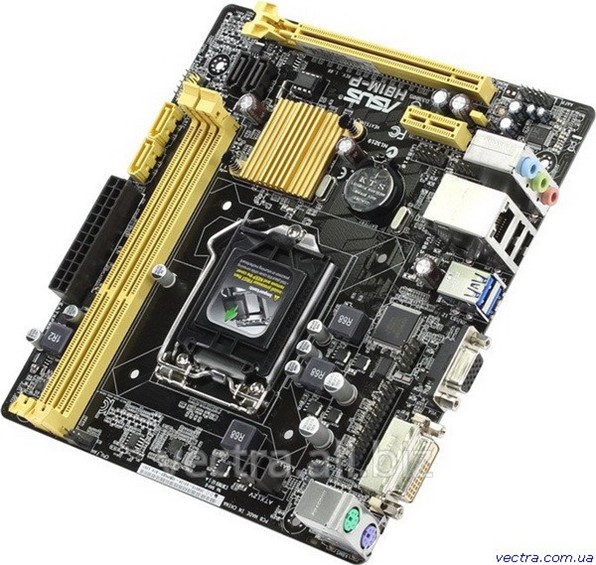

MB Asus H81M-P_PLUS, Киев

CPUIntel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™
i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPUSupports Intel®
Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support
depends on the CPU types.* Refer to www.asus.com for CPU support
listChipsetIntel® H81Memory2 x DIMM,
Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel
Memory Architecture Supports Intel® Extreme Memory Profile (XMP)* Hyper
DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).*
Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP
mode will run at the maximum transfer rate of DDR3 1600
Mhz.GraphicIntegrated Graphics Processor Multi-VGA
output support : HDMI/DVI/RGB ports - Supports HDMI with max. resolution
4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz- Supports DVI with max. resolution
1920 x 1200 @ 60 Hz- Supports RGB with max. resolution 1920 x 1200 @ 60
HzMaximum shared memory of 1024 MBSupports Intel® InTru™ 3D, Quick Sync
Video, Clear Video HD Technology, Insider™Dual independent displays support
with HDMI/DVI and D-SubExpansion Slots1 x PCIe x16 3 x
PCIe 2.0 x1 StorageIntel® H81 chipset : 2 x SATA 6Gb/s
port(s), yellow2 x SATA 3Gb/s port(s), dark brownSupports Intel® Rapid
Start Technology, Intel® Smart Connect Technology
*1LANRealtek® 8111G, 1 x Gigabit LAN
Controller(s)AudioRealtek® ALC887 8-Channel High Definition
Audio CODEC *2- Supports : Jack-detection, Multi-streaming, Front Panel
Jack-retaskingUSB PortsASMedia® ASM1042 controller : 2 x
USB 3.0/2.0 port(s) (2 at back panel, blue)Intel® H81 chipset : 2 x USB
3.0/2.0 port(s) (2 at mid-board)Intel® H81 chipset : 8 x USB 2.0 port(s)
(4 at back panel, black, 4 at mid-board)Special FeaturesASUS
5X Protection :- ASUS DIGI+ VRM - 3 Phase digital power design- ASUS
Enhanced DRAM Overcurrent Protection - Short circuit damage prevention -
ASUS ESD Guards - Enhanced ESD protection - ASUS High-Quality 5K-Hour Solid
Capacitors - 2.5x long lifespan with excellent durability - ASUS Stainless
Steel Back I/O - 3x more durable corrosion-resistant coating ASUS EPU :-
EPU ASUS Exclusive Features :- GPU Boost- AI Suite 3- Ai
Charger+- Anti-Surge- ASUS UEFI BIOS EZ Mode featuring friendly graphics
user interface - Network iControl- USB 3.0 Boost- Disk
UnlockerASUS Quiet Thermal Solution :- Stylish Fanless Design Heat-sink
solution- ASUS Fan Xpert ASUS EZ DIY :- ASUS CrashFree BIOS 3 -
ASUS EZ Flash 2 ASUS Q-Design :- ASUS Q-SlotOperating System
SupportWindows® 8.1 Windows® 8 Windows® 7 Back I/O
Ports1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x
DVI1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.0
(blue)4 x USB 2.0 3 x Audio jack(s)Internal I/O
Ports1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)2 x SATA
6Gb/s connector(s)2 x SATA 3Gb/s connector(s)1 x CPU Fan connector(s) (1
x 4 -pin)1 x Chassis Fan connector(s) (1 x 4 -pin)1 x S/PDIF out
header(s)1 x 24-pin EATX Power connector(s)1 x 4-pin ATX 12V Power
connector(s)1 x Front panel connector(s) 1 x Front panel audio
connector(s) (AAFP)1 x Internal speaker connector(s)1 x Clear CMOS
jumper(s)AccessoriesUser's manualI/O Shield2 x SATA
6Gb/s cable(s)BIOS64 Mb Flash ROM, UEFI AMI BIOS, PnP,
DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2,
ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12
PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect)
memory information ManageabilityWfM 2.0, DMI 2.0, WOL by
PME, PXE Support DiscDriversASUS UtilitiesEZ Update
Anti-Virus Software (OEM Version)Form FactoruATX
Form Factor 9.6 inch x 7.2 inch ( 24.4 cm x 18.3 cm )
